LRY-330 Flexo Printing Press
LRY-330 Flexo Printing Press

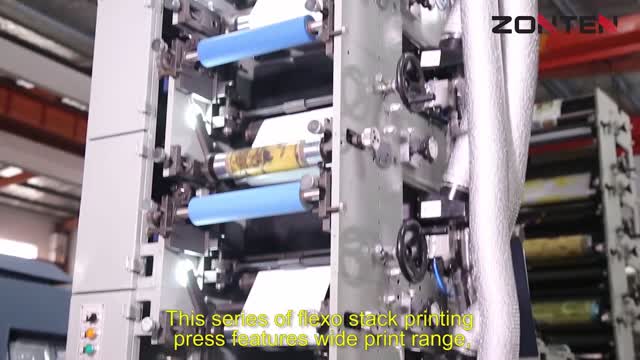

This series of flexo stack printing press features wide print range, pollution-free ink, high-speed printing, and so forth. It enables the operator to conduct a multitude of operations simultaneously, including rolled paper feeding, printing, varnishing, drying, laminating, die-cutting and rewinding operations. All this adds up to an optimal level of automation which allows us to convert raw materials into finished products in a single pass.

The magnetic powder of the flexo printing machine allows for tension control in the air-expanding unwind shaft. The maximum unwind diameter reaches 600mm. An advanced sensor is used for the positioning of paper. The process of printing each color on a flexo press consists of a series of four rollers: ink roller, anilox roller, printing roller and draw-off roller.

After printing is completed, materials are sent to the die cutting unit. Our flexographic printing machine is available with 3 die cutting stations, which can perform die cutting, slitting and single-sheet cutting operations on different products according to various customer requirements. A touch screen controller is provided to realize the optimal adjustment of the flexographic press. It is noteworthy that our machine is typically equipped with an IR drying system. It also enables the operator to choose a UV drying system or a UV&IR drying system upon request. The printed image is presented with a maximum of 6 colors. The printing speed can reach up to 80 meters per minute.

    This flexographic printing device is flexo stacked type, featuring wide printing range, pollution-free oil, and high printing speed.

  • Paper feeding
    The tension of the air expanding shaft whose inner diameter is 76mm is controlled via magnetic powder. It allows the maximum paper roll diameter to be 600mm.

    Paper transmission correction
    A smooth paper transmission result is ensured through the sensor control unit.

    Printing units
    Each color group is consisted of delivery roller, anilox roller, plate roll, and pull roll.

  • Paper delivery
    The printed paper material will be transmitted to die cutting station directly.

  • Paper rewinding
    The air expanding shaft with an inner diameter of 76mm allows for a maximum rewinding diameter of 600mm.

  • Control panel of the printing machine
    Each of the operations can be adjusted by manipulating the touch screen.
